18650–32700 Cylindrical Lithium-Ion Battery Pack Assembly Line

Full-Process Turnkey Solution for Cylindrical Battery Pack Production

AITOP's 18650–32700 cylindrical lithium-ion battery pack assembly line is a complete turnkey solution covering the entire production workflow — from cell testing and grading to insulation, sorting, welding, BMS testing, aging, and final packaging. Designed for flexibility and scalability, it supports a wide range of cylindrical cell formats including 18650, 21700, 26650, 32650, and 32700.

Applications

Widely deployed in:

• Power tools

• Smart home devices

• Electric vehicles & E-bikes

• Photovoltaic energy storage

• Intelligent lighting

• Mobile power & portable electronics

• Small appliances

• New energy vehicles

•

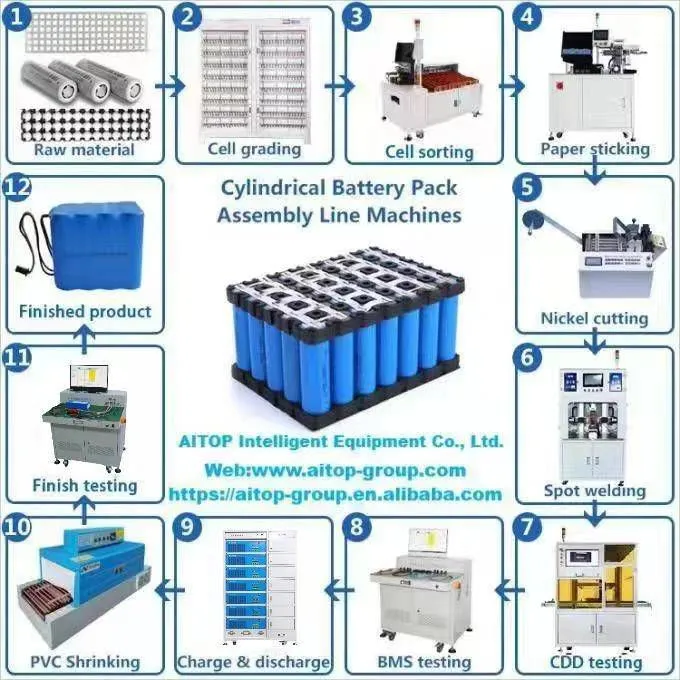

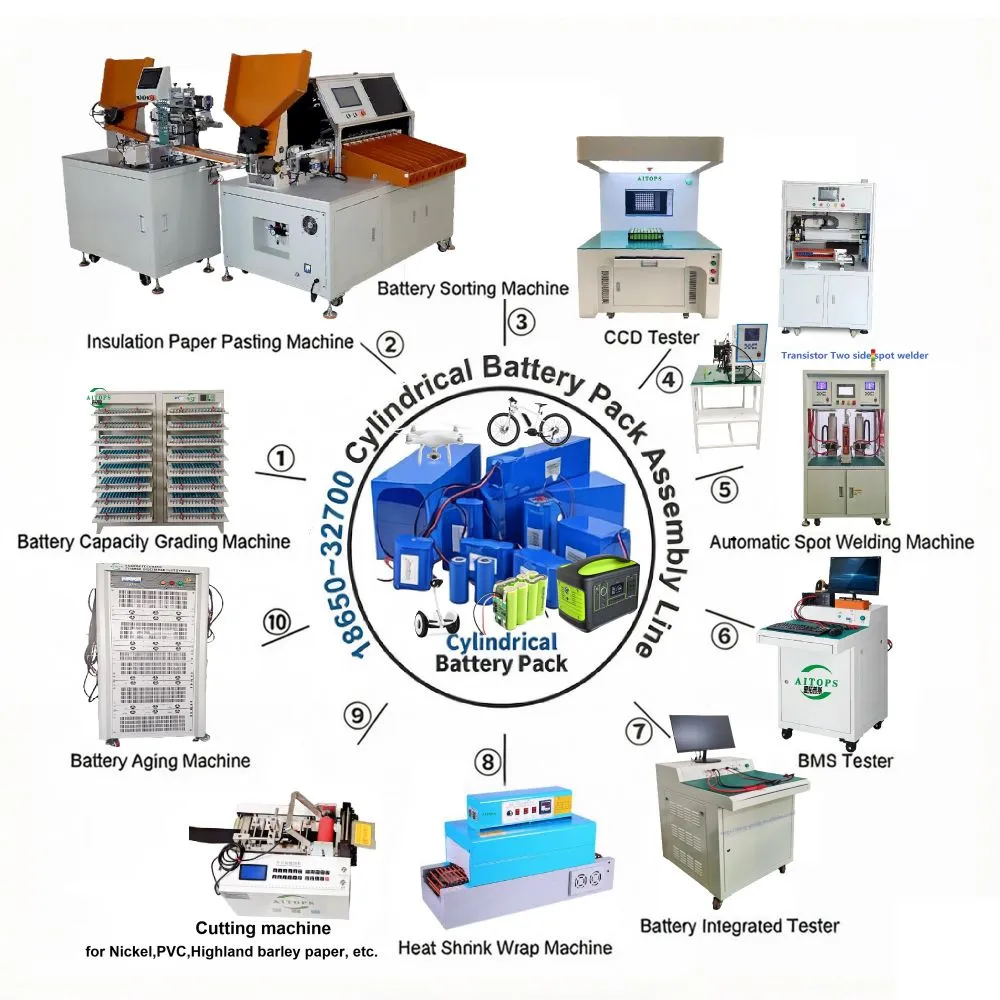

Complete Equipment Lineup

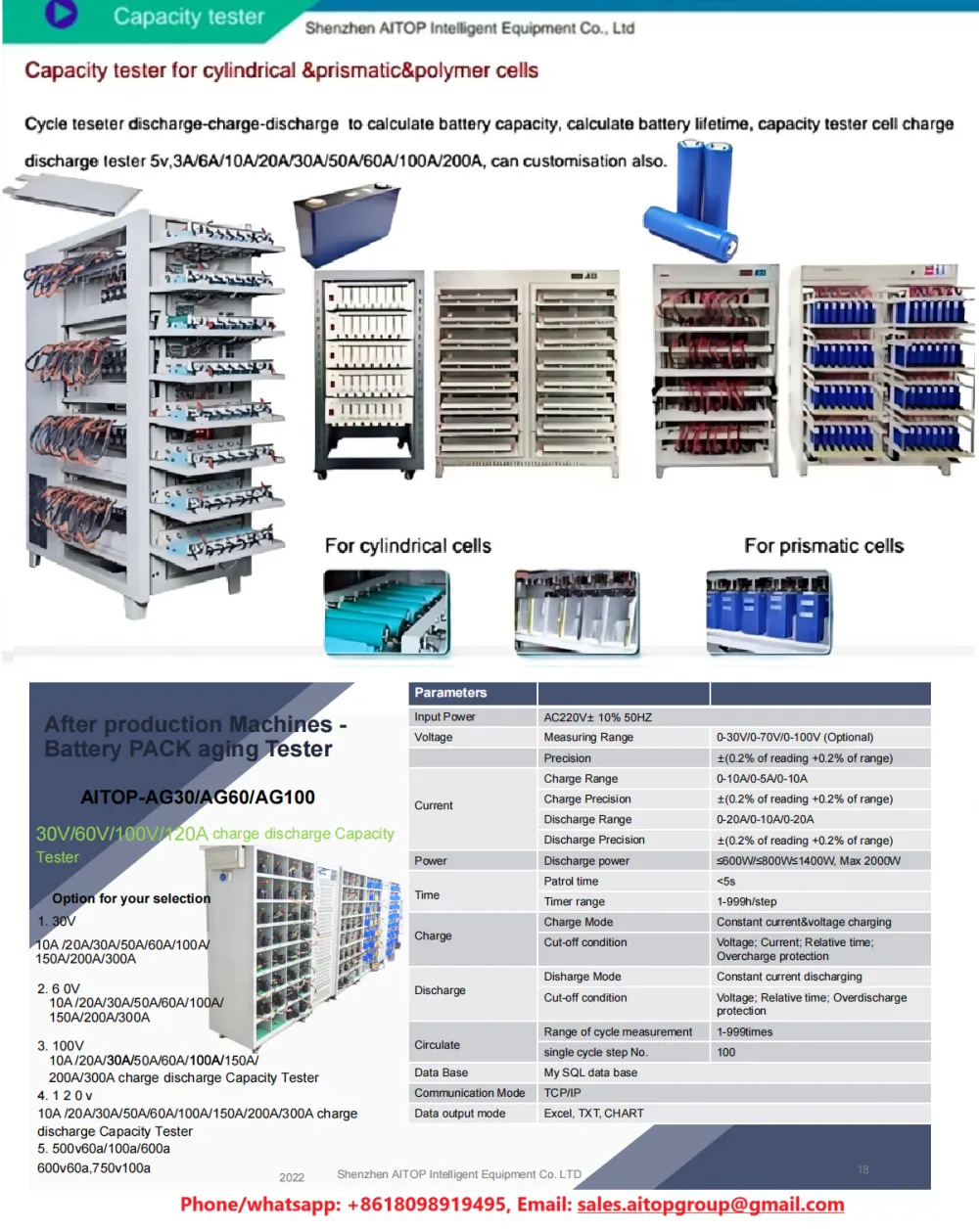

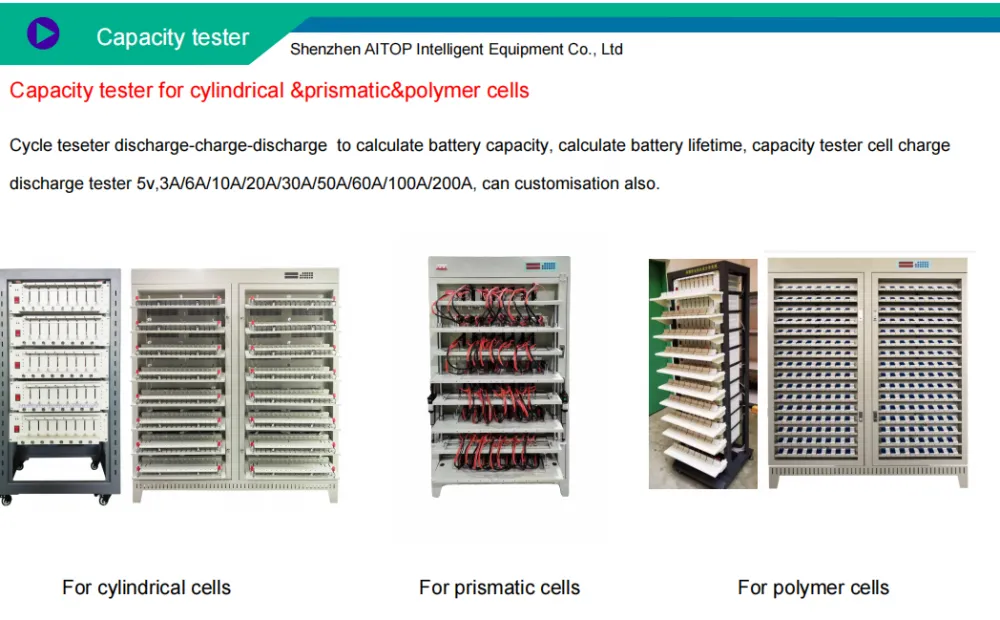

1. Lithium-Ion Battery Cell Tester
Detects cell capacity, magnification ratio, and cycle life to ensure incoming cells meet production requirements. Available in 5V 3A/6A, 256/512 channels configurations.

2. Insulation Paper Sticking Machine
Applies barley paper or PVC insulation to the positive electrode of cylindrical cells, providing reliable electrical isolation and protection.
Specs: Barley paper max 350mm; scroll inner diameter 72–75mm.

3. Battery Sorting Machine
Multi-stage sorting based on adjustable internal resistance thresholds. Equipped with imported voltage/internal resistance tester, integrated PC, high-end drive system, and full electric motor configuration.
Available: 5–22 channels; data recording function optional.

4. CCD Visual Inspection Machine
High-efficiency, high-accuracy inspection of battery orientation in series/parallel connections and spot-welding defect identification.

5. Spot Welding Machine
Used for welding cells and nickel strips in cylindrical battery assembly. Features adjustable pulse width, minimal spatter, and discoloration-free weld spots. Includes two-stage current detection, audible/visual alarms for abnormal current, and self-diagnostic functions that display fault points for easy maintenance.

Options:

• Manual Spot Welding Machine — Pneumatic AC spot welder (single or double welding point); AC pedal manual spot welder

• Automatic Spot Welding Machine — Single-side or double-side automatic spot welder

6. BMS Tester
Multifunctional protection board tester verifying functional parameters of power battery protection boards.
Specs: 1–52 series optional; over-discharge protection current 120A–800A.

7. Battery Pack Comprehensive Tester
Key test items: open-circuit voltage, AC internal resistance, discharge test, discharge over-current test, short-circuit protection test, charge test, and charge protection test.
Specs: 60V–200V; charge 30A–300A; discharge 120A–600A.

8. Heat Shrink Wrap Machine
PVC heat shrinking machine for cylindrical and combined battery heat shrink packaging. Uses far-infrared + circulating wind heating for uniform shrinkage, beautiful deformation, and high concentration.
Specs: Film speed 50–70 PCS/MIN; film precision ±0.1MM.

9. Expiry Date & Batch Number Printing Machine
Inkjet printing of manufacturer, model, production date, voltage, capacity, energy, and batch number on the battery outer surface for full traceability.

10. Battery Pack Charge-Discharge Machine (Aging Cabinet)
Tests charge/discharge cycles of finished lithium battery packs. Test items: charging protection voltage, discharging protection voltage, capacity, etc. Four test steps: charging, discharging, shelving, and cycling — fully programmable.
Specs: Voltage 20V–1650V; discharge current 10A–1200A.

Why Choose AITOP

Full-Line Coverage
One supplier for the entire cylindrical battery pack assembly process — no need to coordinate multiple vendors.

Flexible Configuration
Equipment configuration can be adjusted according to cell type, pack structure, voltage/capacity requirements, production capacity, and automation level.

Proven Reliability
Imported testing components, integrated PC control, and two-stage current detection ensure consistent weld quality and accurate grading.

Scalable Automation
From semi-automatic lines for pilot production to fully automatic lines for mass production — AITOP scales with your business.

Cost-Effective
Competitive pricing without compromising on quality or after-sales support.

AITOP — Your Cylindrical Battery Pack Assembly Partner.
